Fiber Optic Cable Production Line Costs: A Comprehensive Price Analysis

Considering an investment in fiber optic cable manufacturing? Be prepared for significant financial commitments—production lines can range from millions to tens of millions of dollars.

A typical fiber optic cable production line costs between $5 million and $20 million, with pricing determined by factors like scale, output capacity, and included machinery. Basic downstream processing setups start at around $5 million, while fully integrated facilities that include preform manufacturing can surpass $20 million.

With 15 years of industry experience assisting dozens of manufacturers in navigating this investment, I've found that costs vary drastically depending on whether you're building a fully integrated plant or focusing on specific production stages.

What Factors Contribute to These High Investment Costs?

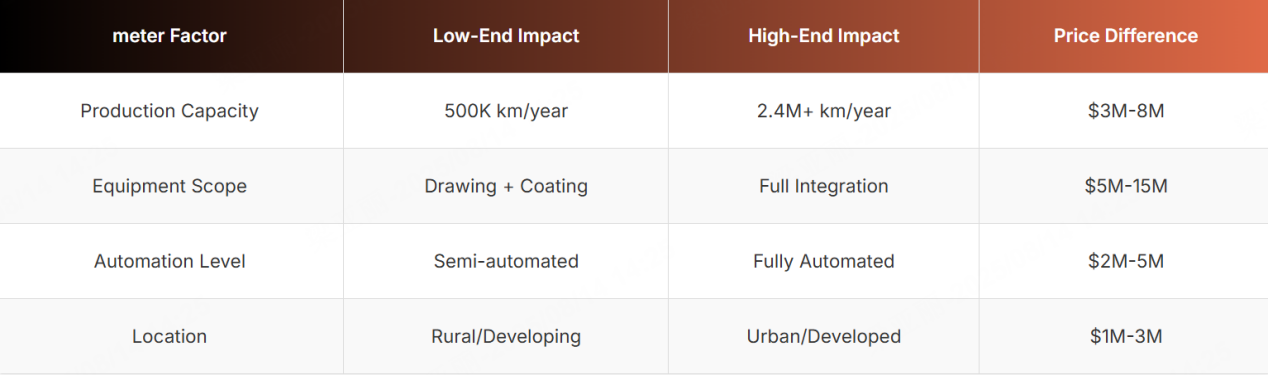

The large price tags can feel overwhelming, but understanding the key variables helps optimize spending without sacrificing quality. Production line costs depend on five primary factors: annual production capacity (measured in kilometers), equipment scope (from preform production to final cable assembly), automation level, facility location, and supplier reputation. Adding preform manufacturing alone can increase your investment by $3–10 million.

Let's break down how these factors impact your budget:

• Production capacity is the most critical factor. A facility targeting 500,000 kilometers of annual output requires very different equipment than one planning for 2.4 million kilometers.
• Equipment scope significantly affects pricing. Downstream processing facilities focused on fiber drawing, coating, and cabling are much more affordable than integrated plants that include preform manufacturing. Many businesses start with drawing operations and expand upstream over time.
• Automation level influences both initial investment and long-term profitability. Manual operations require lower upfront costs but higher ongoing labor expenses. Fully automated systems demand larger initial investments but deliver consistent quality and reduced operating costs over time.
• Location adds costs beyond equipment. Urban areas with higher land prices, construction costs, and utility fees can increase your total investment by millions. Factory construction costs, for example, can vary by up to $2 per square meter depending on location.
• Supplier reputation impacts both pricing and long-term value. Premium manufacturers offer precision engineering and comprehensive support, while cheaper alternatives may save money initially but often lead to maintenance issues and quality problems that prove more costly in the long run.

How Does Production Capacity Affect Your Investment?

Capacity planning shapes your entire business model and equipment needs. Poor decisions can lead to either insufficient production or wasted resources—I've seen both mistakes cost companies millions.

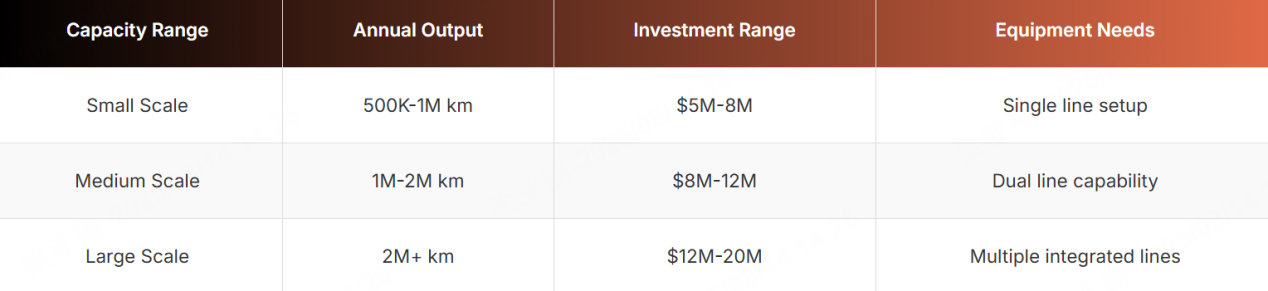

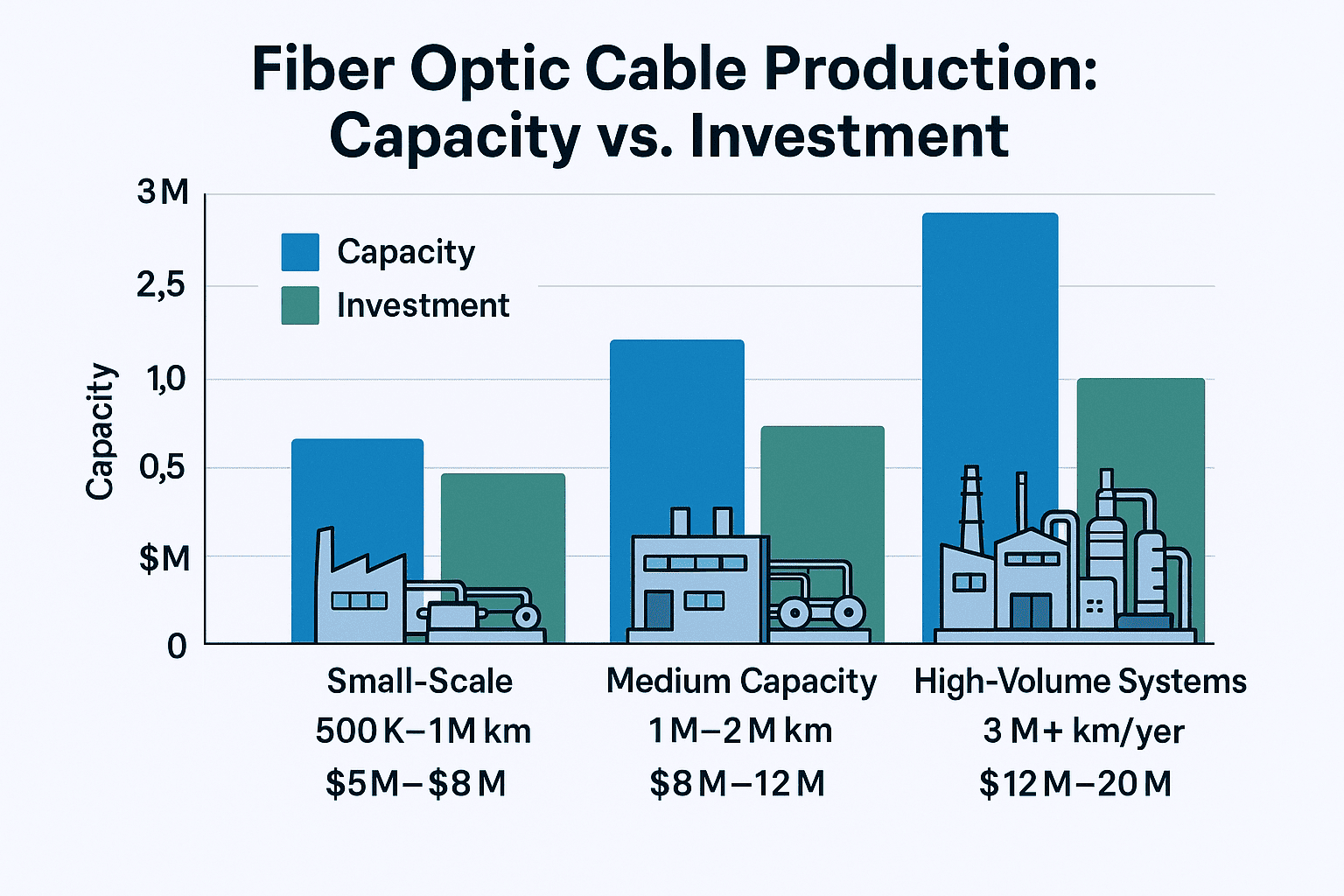

• Small-scale lines (500K–1M km/year): $5M–$8M
• Medium-capacity lines (1M–2M km/year): $8M–$12M
• High-volume systems (2M+ km/year): $12M–$20M (depending on integration and automation)

Small-scale production is ideal for regional markets or specialized cable types, handling 500,000 to 1 million kilometers annually. With investments typically ranging from $5–8 million for complete downstream processing, this approach lets new manufacturers enter the market gradually.

Medium-capacity lines serve growing businesses targeting broader markets, with annual output of 1–2 million kilometers—enough to meet most regional demands. Investments here range from $8–12 million, offering a balanced mix of capability and cost for established manufacturers.

High-volume production targets national or international markets, with annual output exceeding 2 million kilometers. While requiring $12–20 million, these systems deliver economies of scale and competitive unit costs, making them essential for major telecommunications projects.

Careful market analysis is crucial: oversized equipment wastes money through underutilization, while undersized lines limit growth and increase per-unit costs. I always recommend analyzing 10-year demand projections before finalizing capacity decisions.

Higher capacities often require multiple production lines. Each drawing tower has specific output limits, so adding more towers, coating lines, and cabling machines increases investment but provides production flexibility and redundancy.

Which Equipment Components Have the Biggest Impact on Total Costs?

Understanding individual equipment costs helps refine your investment strategy. Some components carry million-dollar price tags but offer essential capabilities, while others, though costly, are critical for quality production.

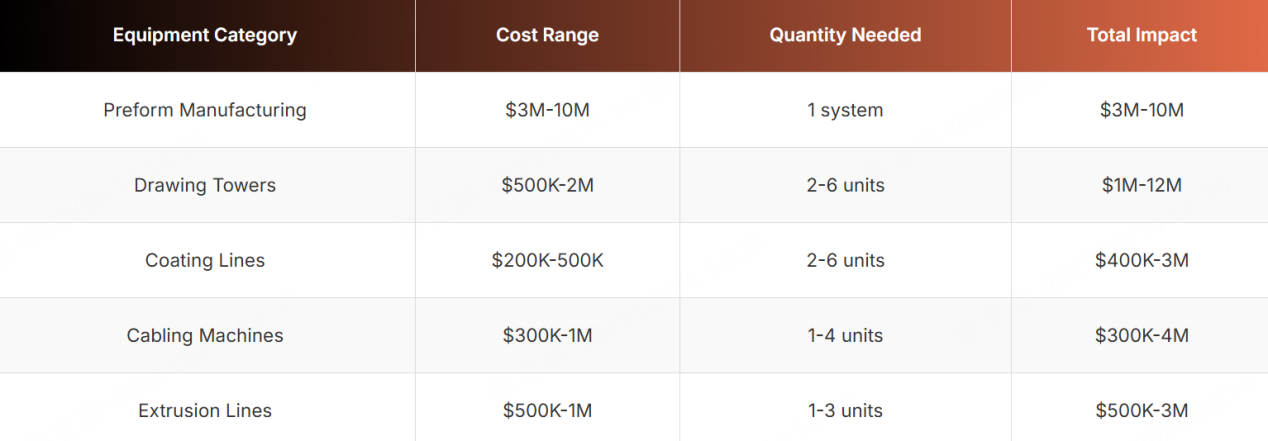

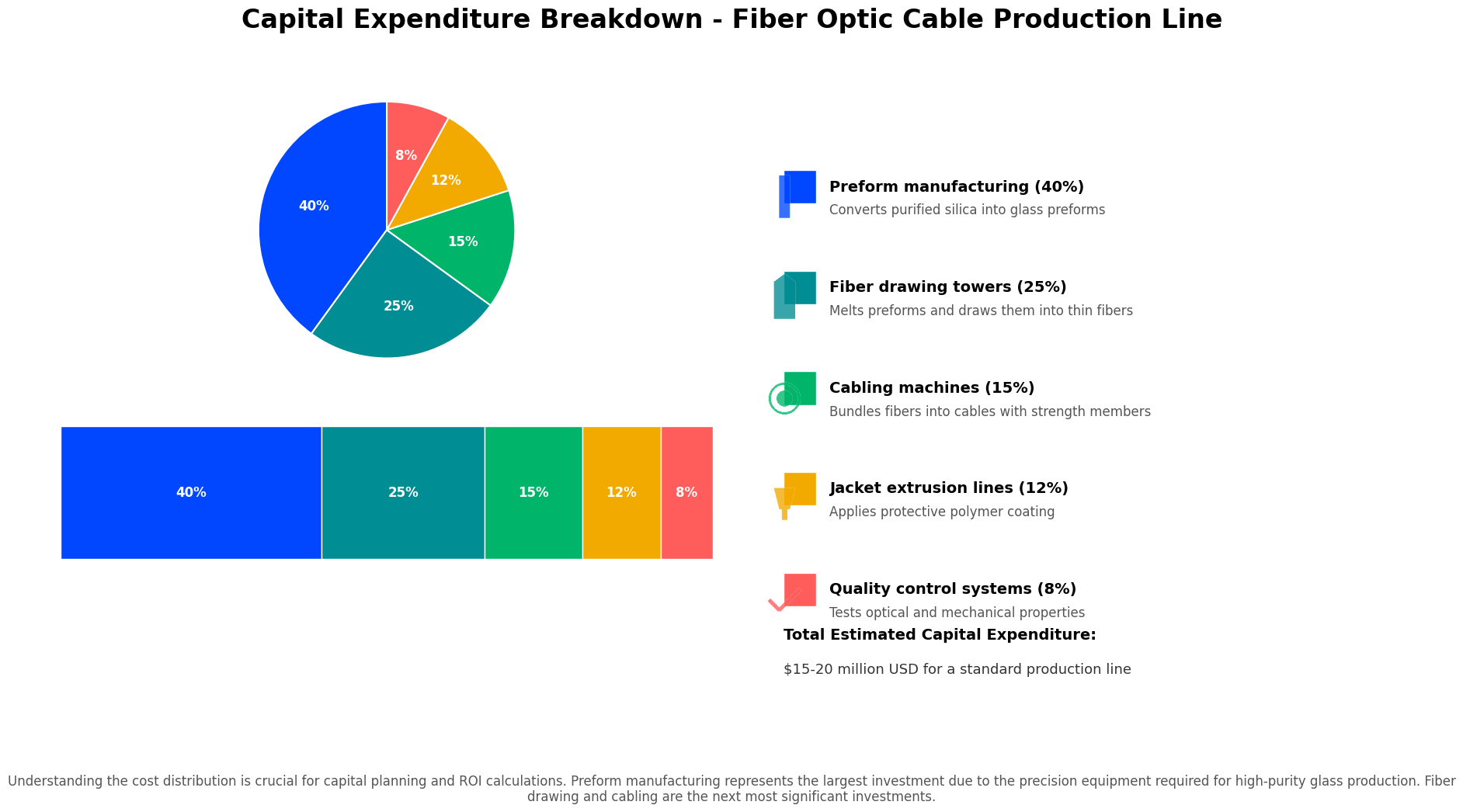

Preform manufacturing equipment is the single largest investment at $3–10 million, followed by fiber drawing towers ($500K–2M each), cabling machines ($300K–1M), and jacket extrusion lines ($500K–1M). Quality control systems add another $200K–$500K per line.

• Preform manufacturing equipment dominates costs for integrated facilities. These systems produce glass preforms (the starting material for optical fibers) and require sophisticated engineering to control glass chemistry, temperature, and precision. Many manufacturers avoid this expense by purchasing preforms from specialized suppliers.
• Fiber drawing towers form the production backbone. These precision machines draw optical fiber from preforms at controlled speeds and temperatures, costing $500,000–$2 million each (depending on capacity and automation). Multiple towers provide flexibility and backup.
• Secondary coating lines protect fibers with UV-cured polymers, costing $200K–$500K per line. Proper coating prevents microbending losses and mechanical damage during assembly.
• Cabling machines bundle fibers into cables, ranging from $300K–$1M depending on cable types and automation. Advanced models handle loose tube, ribbon, and specialty cables for diverse applications.

Coloring machines apply identification colors to individual fibers, costing $100K–$300K each. While individually affordable, multiple units add up—yet proper color coding is essential for installation and maintenance.

Quality control and testing equipment (including optical time domain reflectometers, insertion loss testers, and mechanical testing systems) costs $200K–$500K but prevents costly field failures.

How Does Automation Influence Investment Requirements?

Automation decisions affect both upfront costs and long-term competitiveness. Manual systems cost less initially but struggle with consistency and labor expenses, while automated lines require larger investments but deliver superior results.

Semi-automated production lines start at $5M–$8M, while fully automated facilities range from $10M–$20M. Automation reduces labor costs by 60–80%, improves quality consistency, and increases initial investment by 50–100%.

• Semi-automated systems balance cost and efficiency. Key processes like drawing and coating operate automatically, while operators handle material loading, quality checks, and monitoring. This keeps investment moderate while reducing labor needs compared to manual operations.
• Fully automated lines maximize efficiency and consistency. Computer-controlled systems manage everything from preform loading to final packaging, with robots handling material movement, testing, and quality control. Operators focus on monitoring and maintenance.

Advanced automation includes real-time process monitoring, automatic parameter adjustment, and predictive maintenance systems. These features raise initial costs but deliver better quality control and less downtime. Modern facilities often add automated dispensing, cutting, and stripping systems for cable assembly.

Labor market conditions matter: high labor costs or skilled worker shortages make automation more valuable, while regions with abundant skilled labor may justify semi-automated setups. Long-term competitiveness increasingly depends on automation capabilities.

Training requirements vary: semi-automated systems need skilled operators with process knowledge, while fully automated lines require technical maintenance staff but fewer production operators. Factor training costs and ongoing support into your total investment.

Modern automation integrates with enterprise resource planning (ERP) software for full production visibility, enabling real-time quality adjustments and predictive maintenance scheduling—capabilities that justify higher automation investments for competitive manufacturers.

Conclusion

Fiber optic cable production line investments range from $5M to $20M, depending on capacity, integration level, and automation needs. Your approach should align with your market strategy and long-term competitive goals.
