Product Overview
HK-50 PLC+IPC control Simplex/duplex cable production line

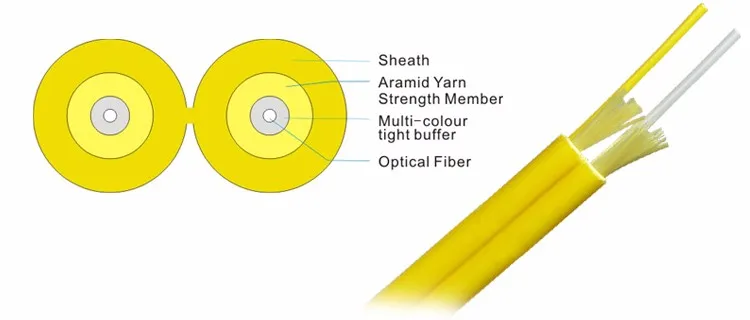

Application: Applied in production of simplex/duplex cable, extrusion material is LSZH/PVC. The extruded sheath possesses the features of even diameter, smooth, fast speed. And low excess loss for optical fiber.
FEATURES AT A GLANCE
1. |
4heads optical fiber motorized pay off rack(No.: 4TZDFX-01) |
1set |
2. |

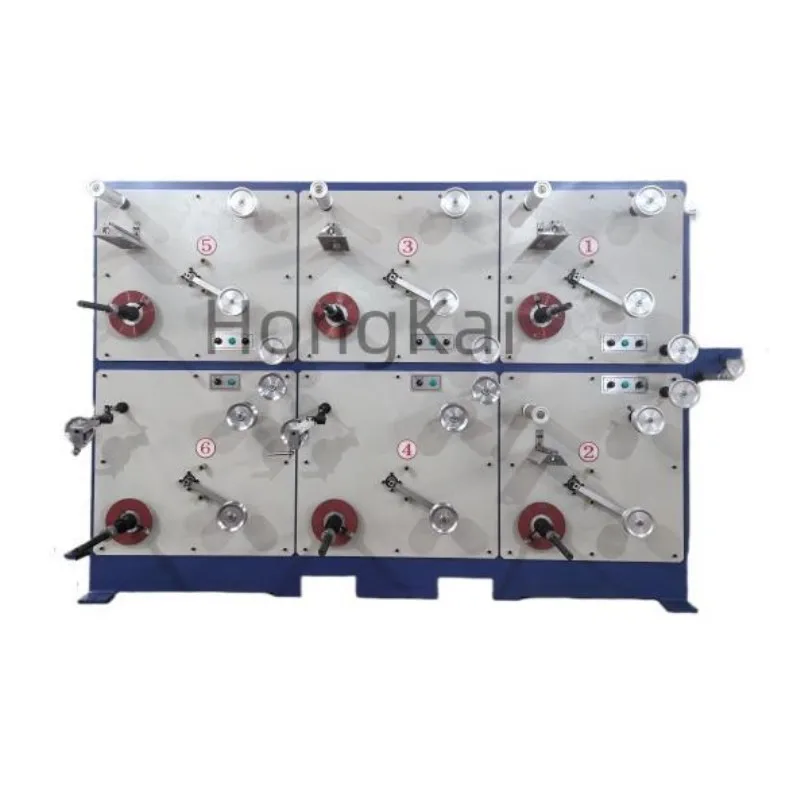

12 heads aramid yarn pay off(No.: 12TFLFX-00) |
1set |
3. |
Mobile positioning mold support (No.:DWJXZZ-00) |
1set |
4. |

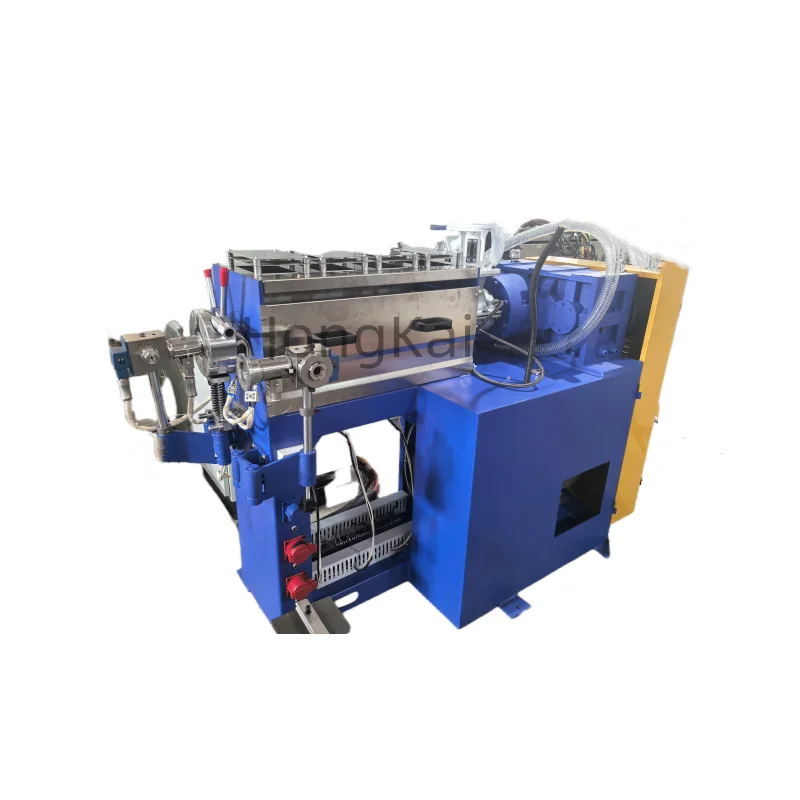

Φ50x25D Extrusion main motor with cross heads(No.:50JSJ-02) |
1set |
5. |
50KG Dryer machine and automatic hopper |
1set |
6. |
Electric apparatus, main temperature control cabinet (IPC+PLC control)（No.：50GKDX-00） |
1set |
7. |
2.5m moving water cooling trough with water tank and warm water tank （No.：2.5MYDRSC-00） |
1set |
8. |
Industrial chiller（No:4PZLJ-00） |
1set |
9. |
8m single-layer U-type fixed type cooling water trough and water tank (with drying device)（No.：8MGDLSC-00) |
1set |
10. |
Shanghai Gongjiu laser diameter gauge |
1set |
11. |
Ink-jet printer stand device without ink-jet printer(No.:PMZZ-00) |
1set |
12. |

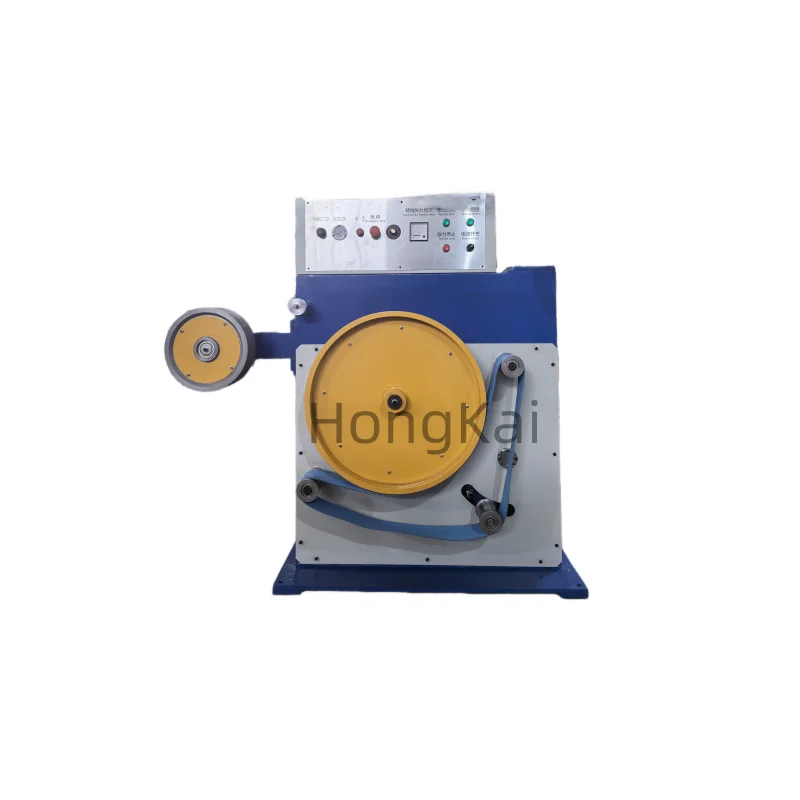

Φ640mm+300mm double-wheel capstan（No.：640LSQY-00） |
1set |
13. |
9m horizontal tension wire accumulator with linear slide（No.：9MHSCXJ-00） |
1set |
14. |

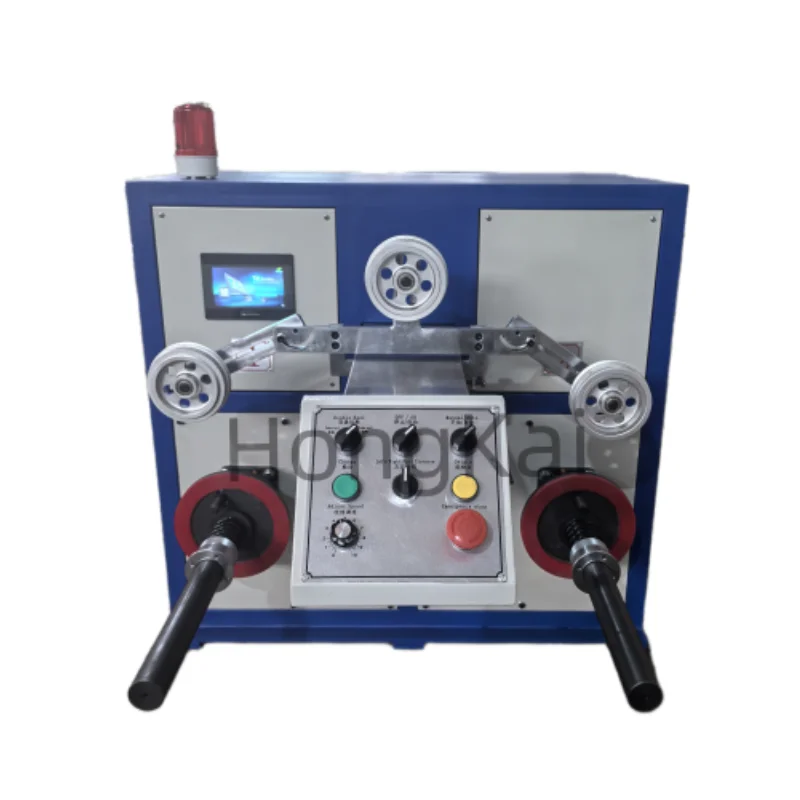

Φ400～630mm double-shaft take-up machine（No.：630SPSX-00） |
1set |
PRODUCT SPECIFICATIONS
No |
Item |
Data |
1 |
No. Of optical fiber pay off： |
4 |
2 |
Specification of reinforcement pay-off reels： |
PN400 reel |
3 |
Reinforcement Specification： |
ø0.9mm |
4 |
Tension of pay off |
0.5N-3N |
5 |
Extruder size： |
Φ50x25D |
6 |
Structure speed： |
Max 150m/min |
7 |
Production speed： |
100--120m/min(2.0/3.0mm) |
8 |
Center height of machine： |
1000mm height from ground |
9 |
Power： |
Approximate 58KW |
10 |
Weight： |
5 ton |
11 |
Line length： |
28M |
12 |
Machine power： |
380V 50HZ three phase five wire |
13 |
Line direction： |
It’s up to customer |
14 |
Range of air pressure： |
0.3---0.6MPa |
15 |
Machine color： |
It’s up to customer |
16 |
Take-up tension: |
5-20N |
17 |
Take-up reels Specification: |
400 reel and 630 reel(central shaft hole diameter ø 56) |
PRODUCT CONFIGURATION
800 single head motorized pay-off rack with straighten
4heads optical fiber motorized pay off rack and 2heads FRP/steel wire pay off rack
Φ400～630mm double-shaft take-up machine
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
