Hongkai Network Cable Making Machine Extruder/Sheathing Twisting for Cat5e/Cat6 Network Cable

Hongkai Network Cable Making Machine Extruder/Sheathing Twisting for Cat5e/Cat6 Network Cable

Overview
Related Products

Product Overview

HK-80 PLC control sheath extruder with figure package coiling machine

Application: suitable for the extrusion of PVC, PE,LSZH, and other insulation material, and usually used for the production of electric wire, net wire, power cable, data wire, building wire, car cable,etc.

PRODUCT SPECIFICATIONS

No	Item	Data
1	No. Of pay off：	1
2	Tension of pay off：	5～15N±0.5N
3	Wire coaxiality:	97%
4	Extrusion output:	150KG/H
5	Copper wire pay-off reels:	PN630 -800mm reels
6	Copper wire Specification:	ø5--20mm
7	Pay-off tension of Copper wire：	5N-20N
8	Extruder size：	Φ80x26D
9	Final product：	CAT5/CAT6/CAT7
10	Structure speed：	Max 200m/min
11	Production speed：	120m/min(8.0mm)
12	Center height of machine：	1000mm height from ground
13	Power：	Approximate 52KW
14	Weight：	7ton
15	Line length：	30M
16	Machine power：	380V 50HZ three phase five wire
17	Line direction：	It’s up to customer
18	Range of air pressure：	0.3---0.6MPa
19	Machine color：	It’s up to customer
20	Take-up tension:	5-20N
21	Take-up reels Specification:	630 reel and 800 reel(central shaft hole diameter ø 56)

FEATURES AT A GLANCE

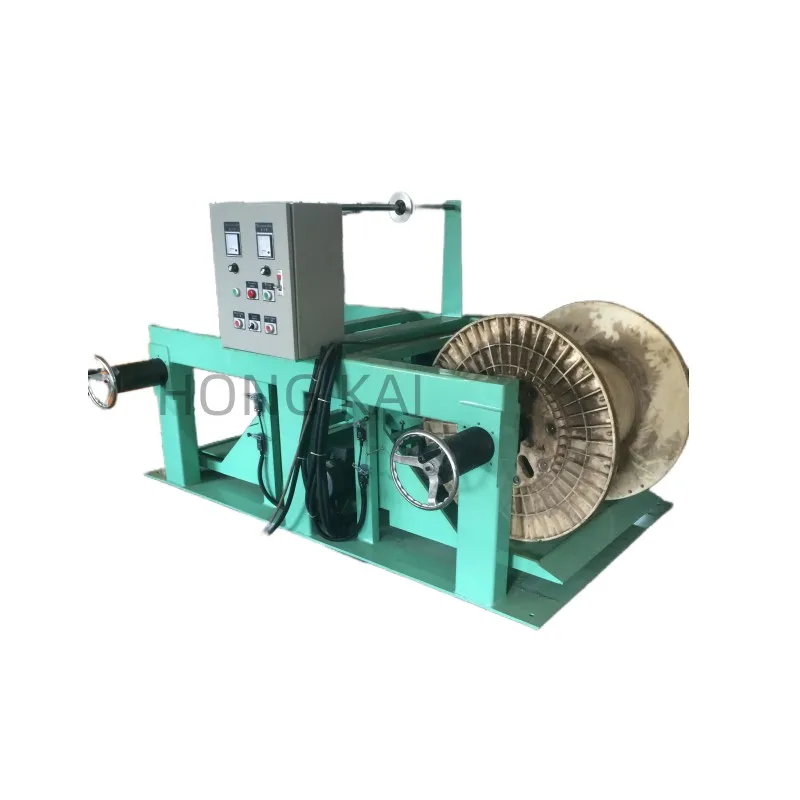

1	Φ630—Φ800mm double head magnetic powder pay off rack	1set

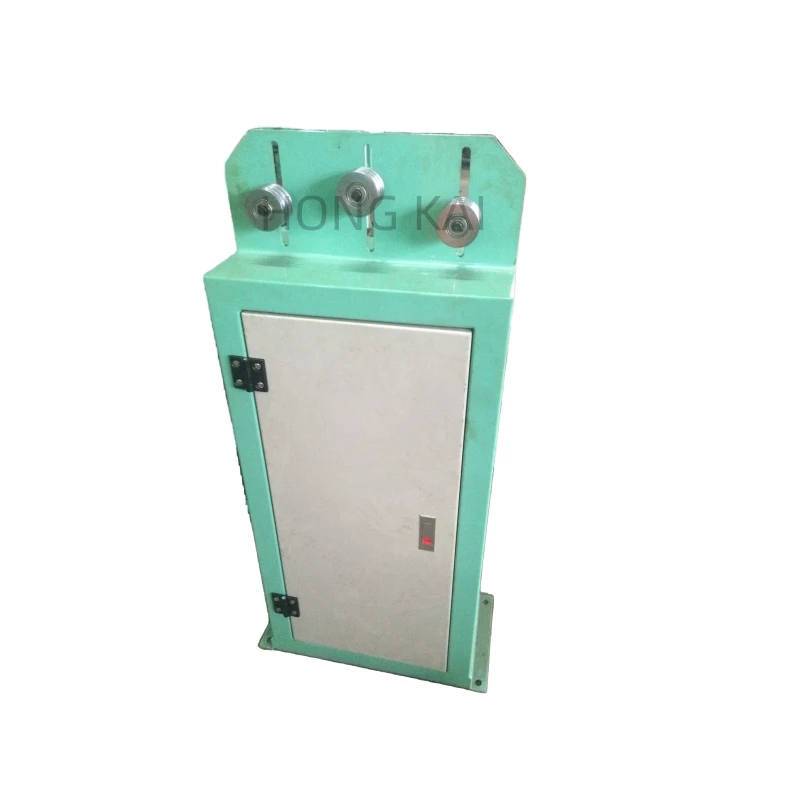

2	Copper wire straight platform(with tool box)	1set

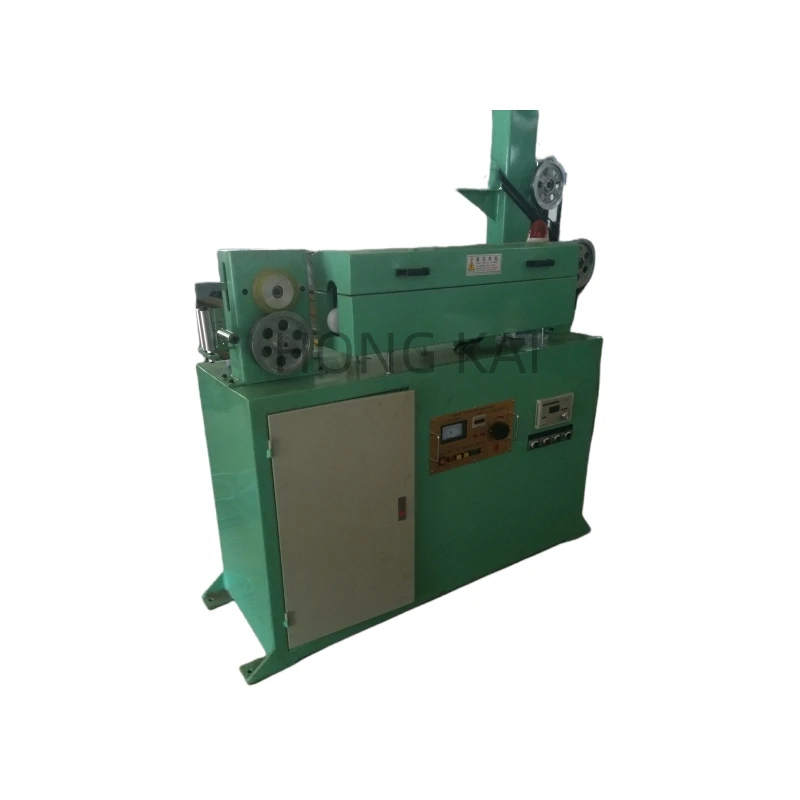

3	Φ80x26D extrusion main motor(fine-adjustment machine head)	1set
4	75KG dryer and automatic hopper(TAIRI brand)	1set
5	Electric apparatus, main temperature control cabinet(PLC control)	1set

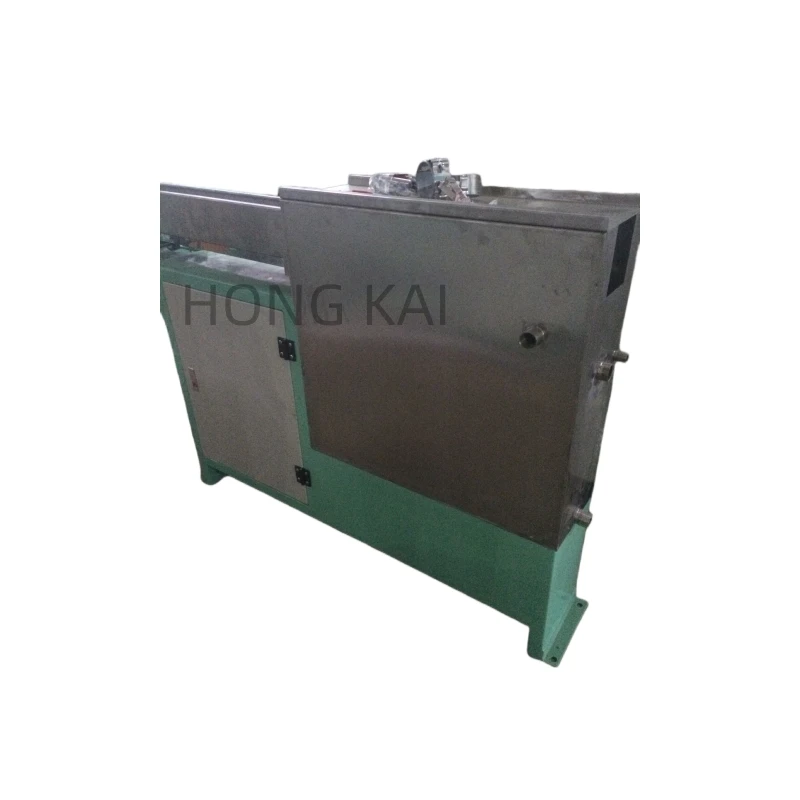

6	2.5m primary and secondary moving warm water trough(with drying device)	1set
7	8m single-layer U type fixed cooling water trough	1set
8	ink-jet printer stand device without ink-jet printer(optional)	1set
9	Φ500mm double wheel capstan(with 4 sections variator)	1set
10	12m horizontal tension wire accumulator	1set
11	15KV high frequency spark machine	1set
12	Electrical induction type count-meter device	1set
13	Φ630mm~Φ800mm double shaft take up machine	1set
