30MM Tight Buffer Production Line Fiber Extruder Machine Making Machine Equipment Production Line
- Overview
- Related Products
Product Overview
30 PLC+IPC control tight buffered fiber production line

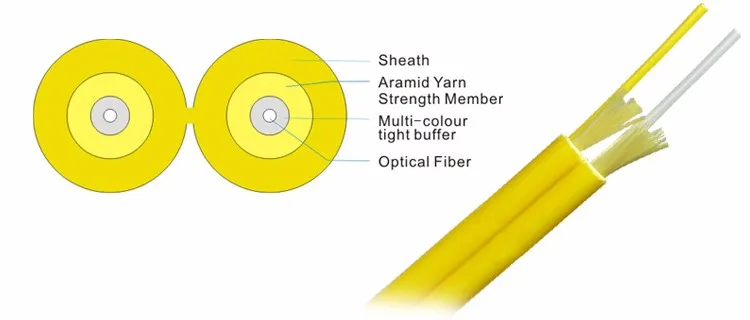

Application: Applied in production of 0.6/0.9mm tight buffer fiber, extrusion material is PVC/LSZH,Hytrel.The extruded sheath possesses the features of even diameter, smooth, fast speed. And low excess loss for optical fiber.
FEATURES AT A GLANCE
Fiber motorized pay-off rack
Φ400mm capstan machine
Φ236-400mm take-up machine
PRODUCT SPECIFICATIONS
1. |
No. Of optical fiber pay off： |
2 |
2. |
Tension of pay off： |
0.3～1.5N±0.05N |
3. |
Reel of optical fiber pay off： |
25km and 50km standard fiber reel |
4. |
Extruding material： |
PVC, LSZH, Hytrel |
5. |
Plasticization degree： |
100% |
6. |
Fiber diameter： |
ø0.25mm |
7. |
Extrusion output： |
30KG/hr( cross head is open) |
8. |
Extruder size： |
Φ30x25D |
9. |
Final product： |
0.6mm/0.9mm tight buffer fiber |
10. |
Structure speed： |
Max 350m/min |
11. |
Production speed： |
100-300m/min |
12. |
Center height of machine： |
1000mm height from ground |
13. |
Precision of meter-counter： |
≤0.2％ |
14. |
Additional loose after extrusion： |
≤0.02dB/km(average value: 0.01 dB/km) |
15. |
Power： |
Approximate 32KW |
16. |
Weight： |
3.5 ton |
17. |
Line length： |
21M |
18. |
Machine power： |
380V 50HZ three phase five wire |
19. |
Line direction： |
It’s up to customer |
20. |
Range of air pressure： |
0.5-0.6MPa |
21. |
Machine color： |
Dark blue |
22. |
Temperature of pre-heater: |
50~300℃ |
23. |
Take-up tension: |
0.5-3N |
24. |
Take-up reels Specification: |
Φ236mm fiber standard reel and Φ400 reel |
PRODUCT CONFIGURATION
1. |

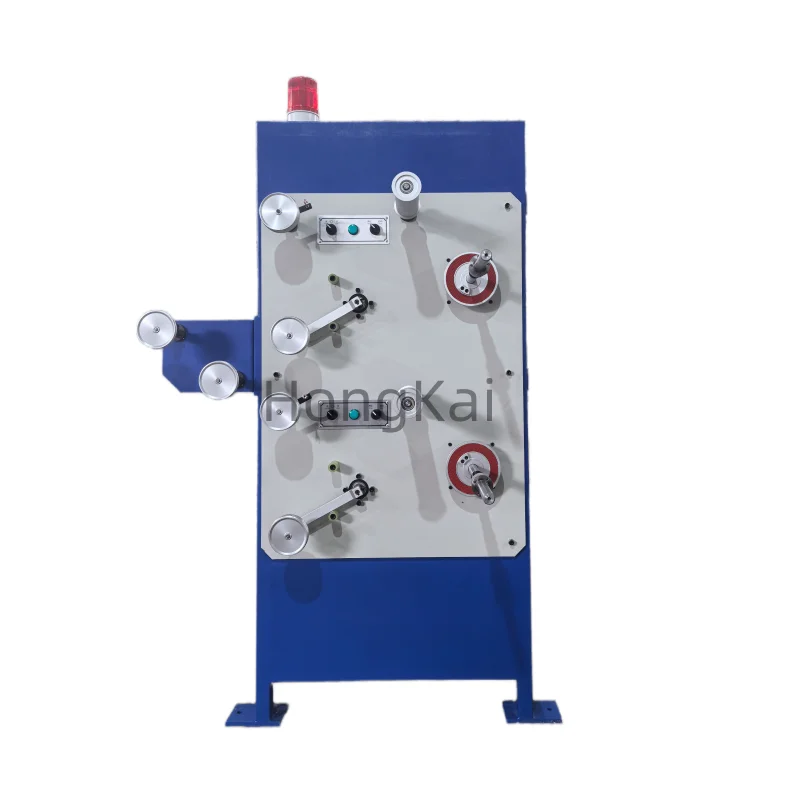

Double heads motorized pay-off rack(No.: 2GQZDFX-00) |
1set |
2. |

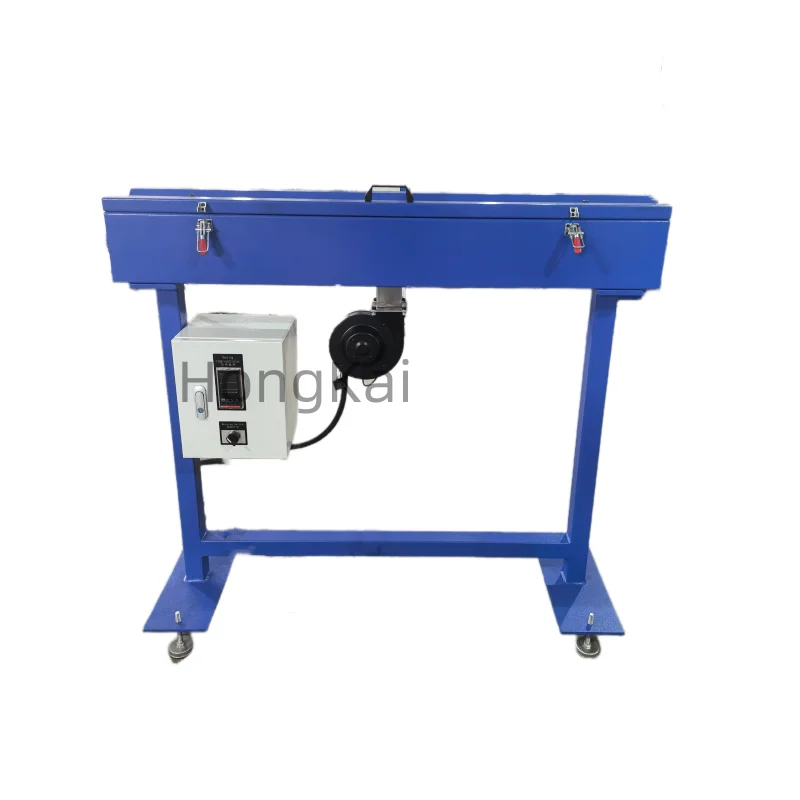

Preheating oven (No.:GQYRZZ-00) |
1set |
3. |
Φ30mm Extrusion main motor (No.:30JSJ-00) |
1set |
4. |
25KG Dryer machine and automatic hopper |
1set |
5. |

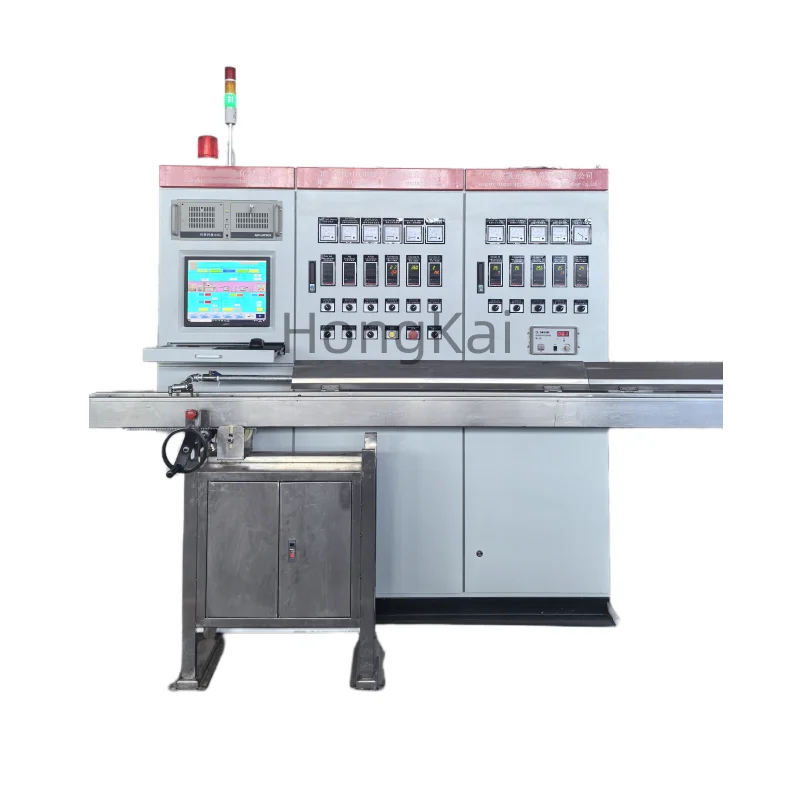

Electric apparatus, temperature control (PLC+IPC control） （No.：30GKDX-00）
|
1set |
6. |
2.5m moving water trough with water tank and warm water tank （No.：2.5MYDRSC-00）
|
1set |
7. |
Shanghai Gongjiu laser diameter gauge |
1set |
8. |
8 m U shape single-layer fixed water trough and cooling water tank （No.：8MLQSC-00)
|
1set |
9. |
Φ400mm single-wheel capstan machine（including dance device） （No.：400LSQY-00）
|
1set |
10. |
Φ236-400mm double-shaft take-up machine（No.：400DZSX-00） |
1set |
