HK-50PLC+IPC control 1-4 fibers FTTH drop cable production line
Applied in production of FTTH terminal optical fiber cable(drop cable), extrusion material is PVC/LSZH. The extruded sheath possesses the features of even diameter, smooth, fast speed. And low excess loss for optical fiber.
FEATURES AT A GLANCE
1. |

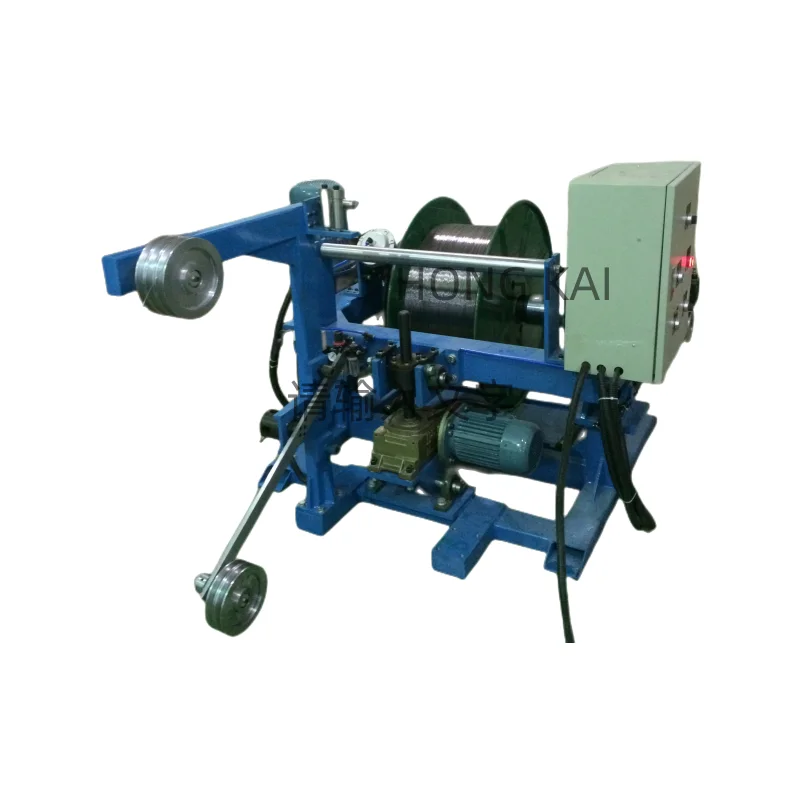

800 single head motorized pay-off rack with straighten (No.:800GSZDFX-00) |
2. |

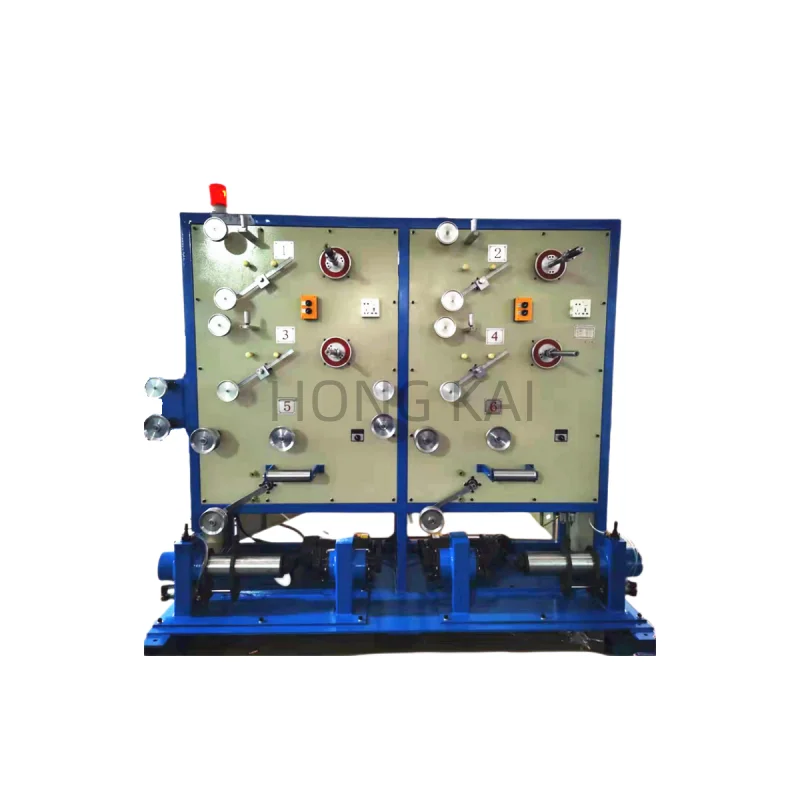

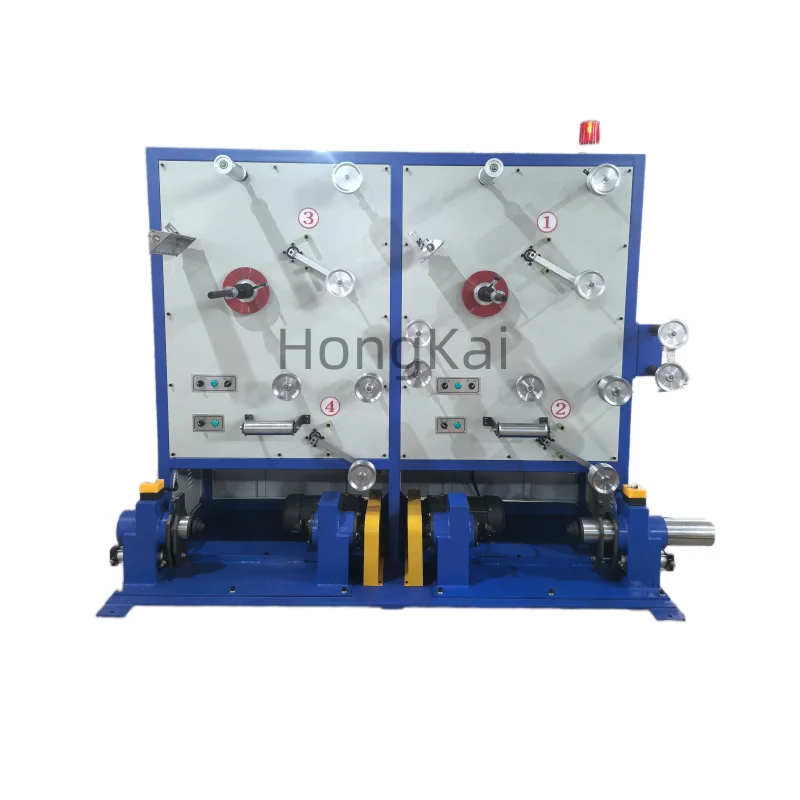

4heads optical fiber motorized pay off rack and 2heads FRP/steel wire pay off rack(No.: 6TZDFX-00) |
3. |
Mobile positioning mold support(No.:MJT-00) |
4. |
Φ50x25D Extrusion main motor (No.:50JSJ-00) |
5. |
50KG Dryer machine and automatic hopper |
6. |

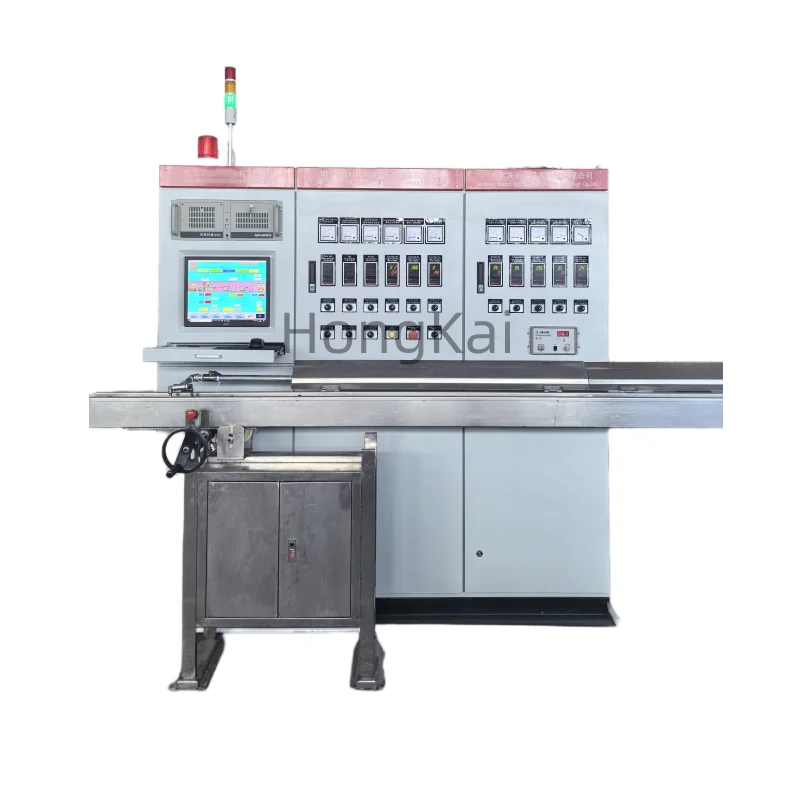

Electric apparatus, main temperature control cabinet (IPC+PLC control)（No.：50PXGKDX-00） |
7. |
2.5m moving water trough with water tank and warm water tank （No.：2.5MYDRSC-00） |
8. |
8m single-layer U-type fixed type cooling water trough and water tank (with drying device)（No.：8MLQSC-00) |
9. |
Industrial chiller（No:4PZLJ-00） |
10. |
Shanghai Gongjiu laser diameter gauge |
11. |
Ink-jet printer stand device without ink-jet printer(No.:PMJZJ-00) |
12. |
Φ640mm+300mm double-wheel capstan（No.：640QY-00） |
13. |
9m horizontal tension wire accumulator with linear slide（No.：9MCXJ-00） |
14. |

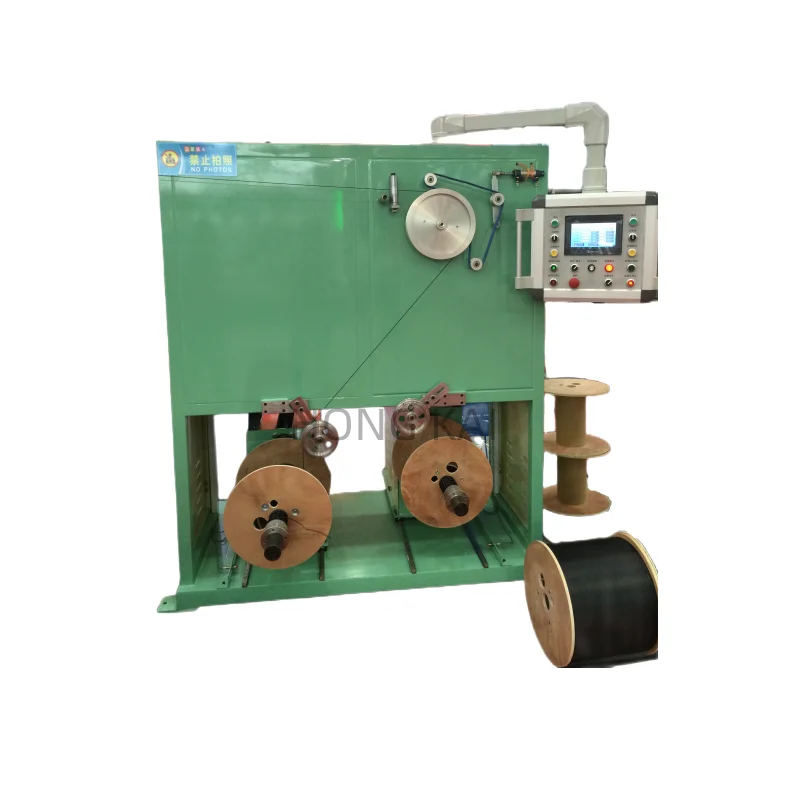

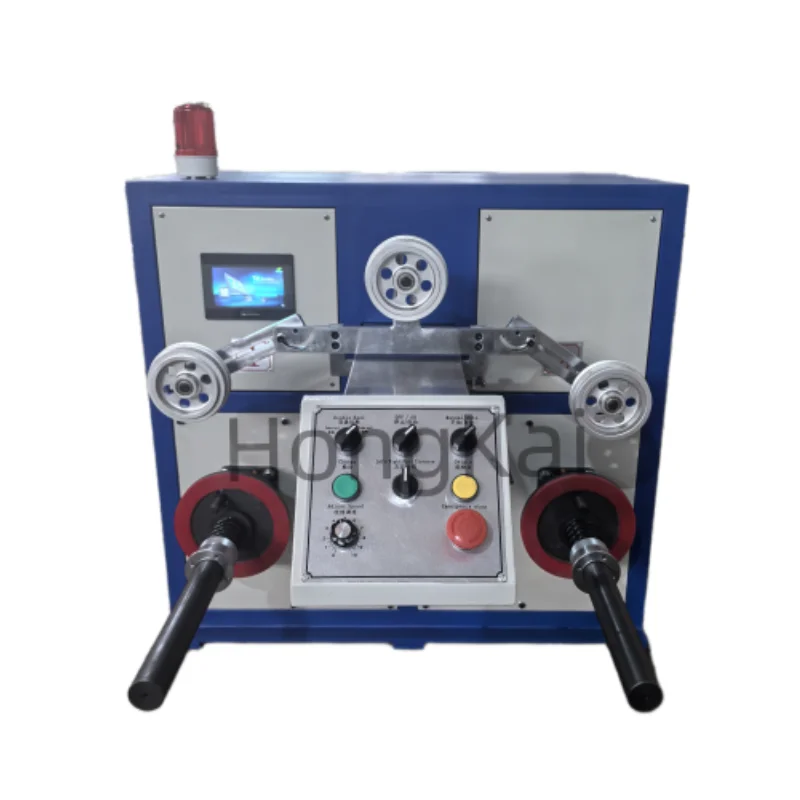

Φ400～630mm double-shaft take-up machine（No.：630SZSX-00） |
PRODUCT SPECIFICATIONS
No |
Item |
Data |
1 |
No. Of optical fiber pay off： |
4 |
2 |
Tension of pay off： |
0.3～1.5N±0.05N |
3 |
Reel of optical fiber pay off： |
25km and 50km standard fiber reel |
4 |
No. of reinforcement pay-off rack： |
2 |
5 |
Specification of reinforcement pay-off reels： |
PN400 reels and ø254×ø116×180×ø32 reels |
6 |
Reinforcement Specification： |
ø0.45mm |
7 |
Pay-off tension of reinforcement： |
5N-20N |
8 |
Extruder size： |
Φ50x25D |
9 |
Final product： |
FTTH drop cable(2.0*3.0mm, 2.0*5.2mm) |
10 |
Structure speed： |
Max 150m/min |
11 |
Production speed： |
100--120m/min(2.0*3.0mm) |
12 |
Center height of machine： |
1000mm height from ground |
13 |
Power： |
Approximate 58KW |
14 |
Weight： |
5 ton |
15 |
Line length： |
28M |
16 |
Machine power： |
380V 50HZ three phase five wire |
17 |
Line direction： |
It’s up to customer |
18 |
Range of air pressure： |
0.3---0.6MPa |
19 |
Machine color： |
It’s up to customer |
20 |
Take-up tension: |
5-20N |
21 |
Take-up reels Specification: |
400 reel and 630 reel(central shaft hole diameter ø 56) |
PRODUCT CONFIGURATION

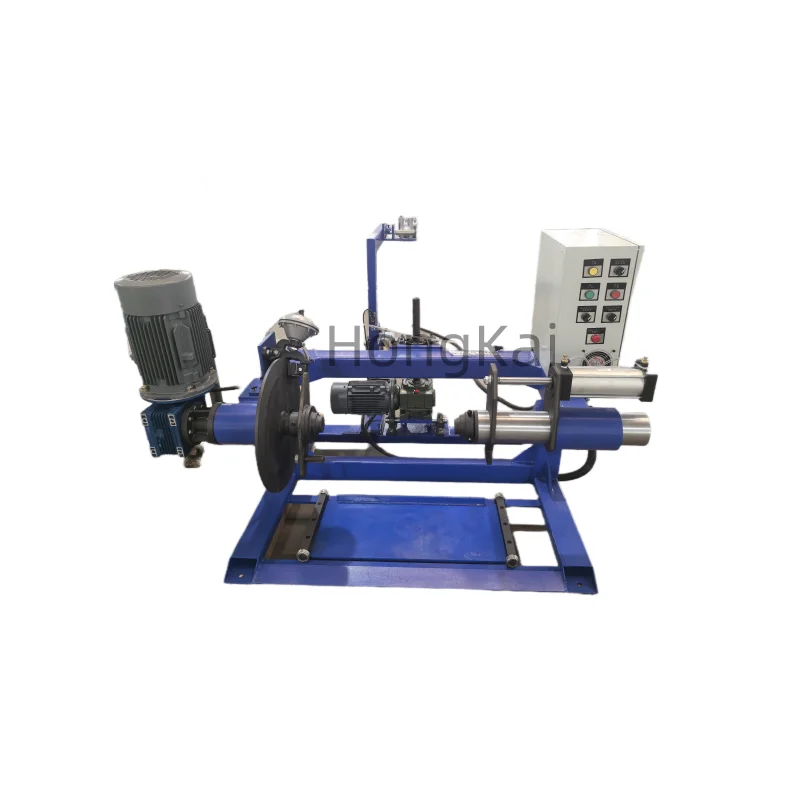

800 single head motorized pay-off rack with straighten
4heads optical fiber motorized pay off rack and 2heads FRP/steel wire pay off rack
Φ400～630mm double-shaft take-up machine
