Product Overview
HK-50+35 PLC control core-wire insulation extruder production line
Application: suitable for the extrusion of PVC, PE, and other insulation material, and usually used for the production of electric wire, net wire, power cable, data wire, building wire, car cable,etc.
PRODUCT SPECIFICATIONS
No |
Item |
Data |
1 |
No. Of pay off： |
1 |
2 |
Tension of pay off： |
1～5N±0.3N |
3 |
Wire coaxiality: |
95% |
4 |
Extrusion output: |
110KG/H |
5 |
Copper wire pay-off reels: |
PN400 -500mm reels |
6 |
Copper wire Specification: |
ø0.3---1.5mm |
7 |
Pay-off tension of Copper wire： |
5N-20N |
8 |
Extruder size： |
Φ50x26D |
9 |
Final product： |
CAT5/CAT6/CAT7 |
10 |
Structure speed： |
Max 500m/min |
11 |
Production speed： |
450m/min(0.95mm) |
12 |
Center height of machine： |
1000mm height from ground |
13 |
Power： |
Approximate 35KW |
14 |
Weight： |
5 ton |
15 |
Line length： |
28M |
16 |
Machine power： |
380V 50HZ three phase five wire |
17 |
Line direction： |
It’s up to customer |
18 |
Range of air pressure： |
0.3---0.6MPa |
19 |
Machine color： |
It’s up to customer |
20 |
Take-up tension: |
5-20N |
21 |
Take-up reels Specification: |
400 reel and 630 reel(central shaft hole diameter ø 56) |
FEATURES AT A GLANCE
1. |
Φ400—Φ500mm single head shaftless motorized pay off rack (No.: ZDFX-00) |
2. |

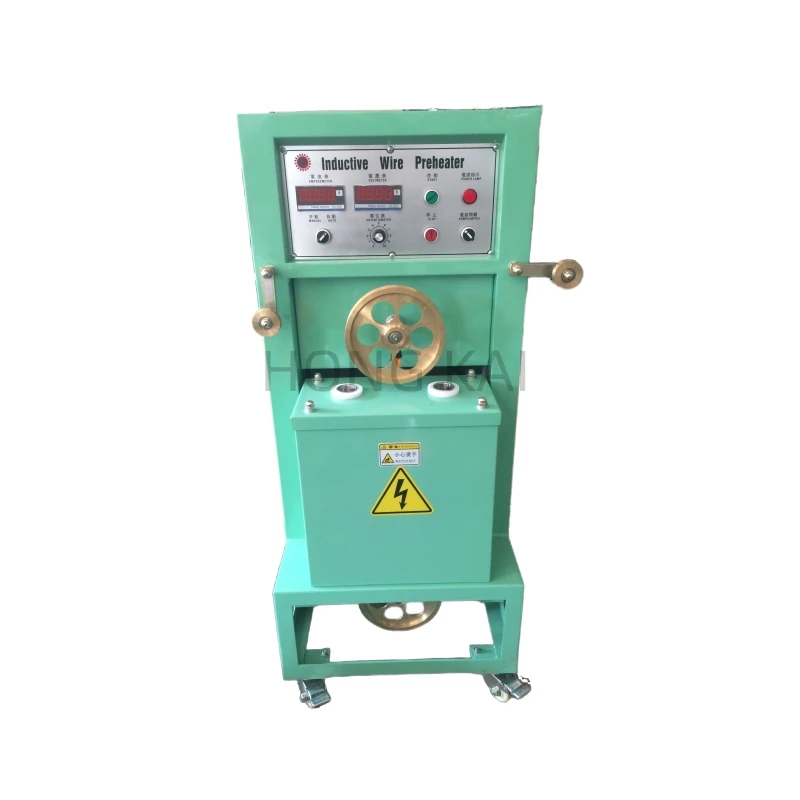

Automatic induction copper wire preheater (No.:ZZT-00) |
3. |
Copper wire straight platform(with tool box) (No.:YRQ-00) |
4. |
Φ50+35 extrusion main motor(U7 free-adjustment machine head) (No.:50JSJ-00) |
5. |
50KG Dryer machine and automatic hopper |
6. |
Electric apparatus, main temperature control cabinet(PLC control)（No.：50GKDX-00） |
7. |
1.5m primary and secondary moving warm water trough(with blowing device)（No.：1.5MYDRSC-00） |
8. |
Shanghai GONGJIU single type laser diameter gauge |
9. |
8m single-layer U type fixed cooling water trough （No.：8MGDSC-00） |
10. |
Φ400mm double wheel capstan |
11. |
9m horizontal tension wire accumulator(with slide plate)（No.：9MCXJ-00） |
12. |

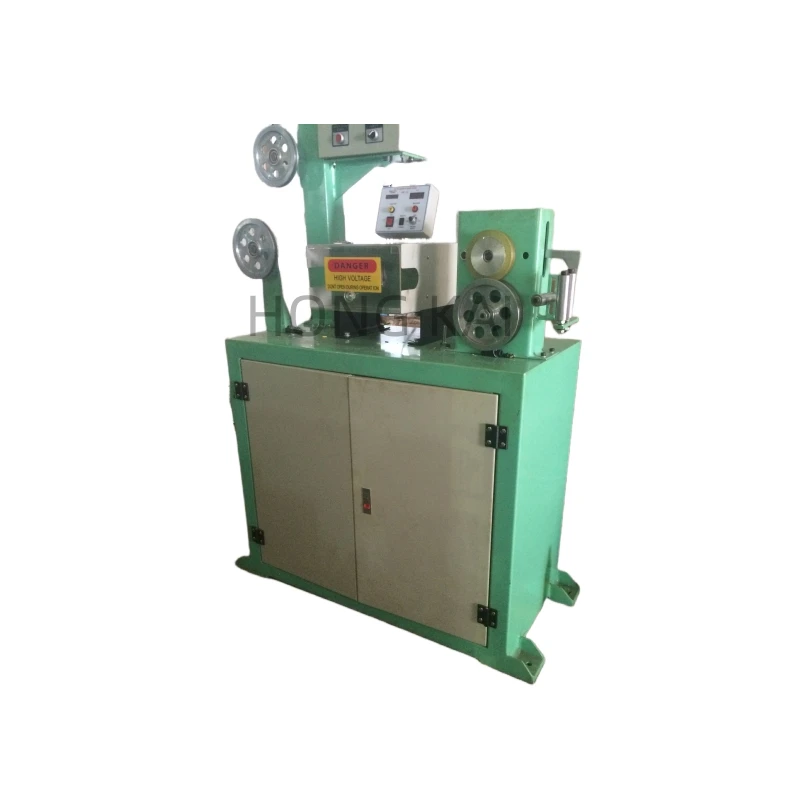

15KV high frequency spark machine |
13. |
Φ400～630mm double-shaft take-up machine（No.：630SZSX-00） |
PRODUCT CONFIGURATION

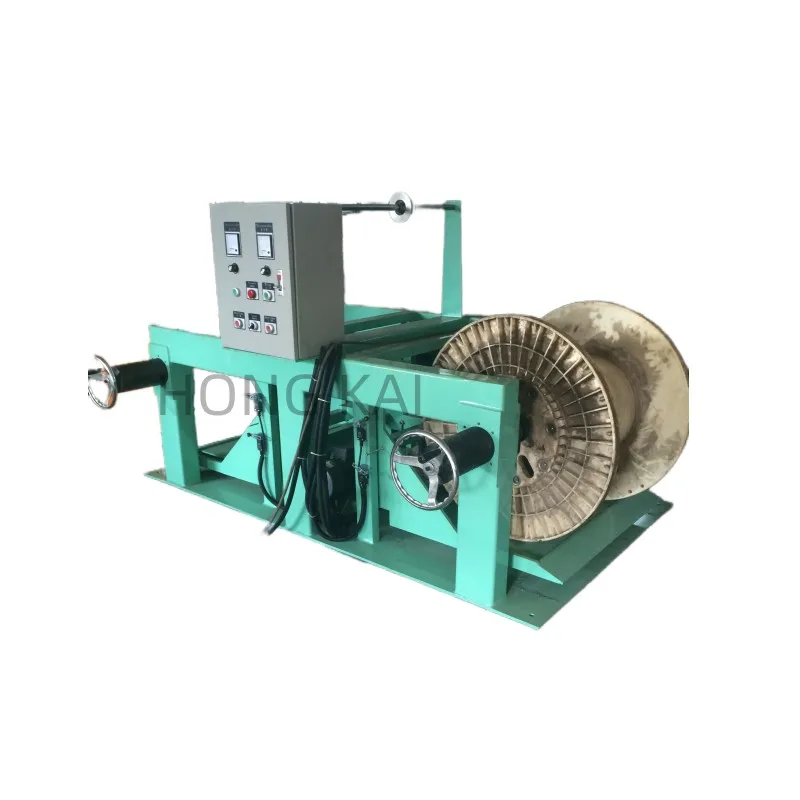

Φ400—Φ500mm single head shaftless motorized pay off rack

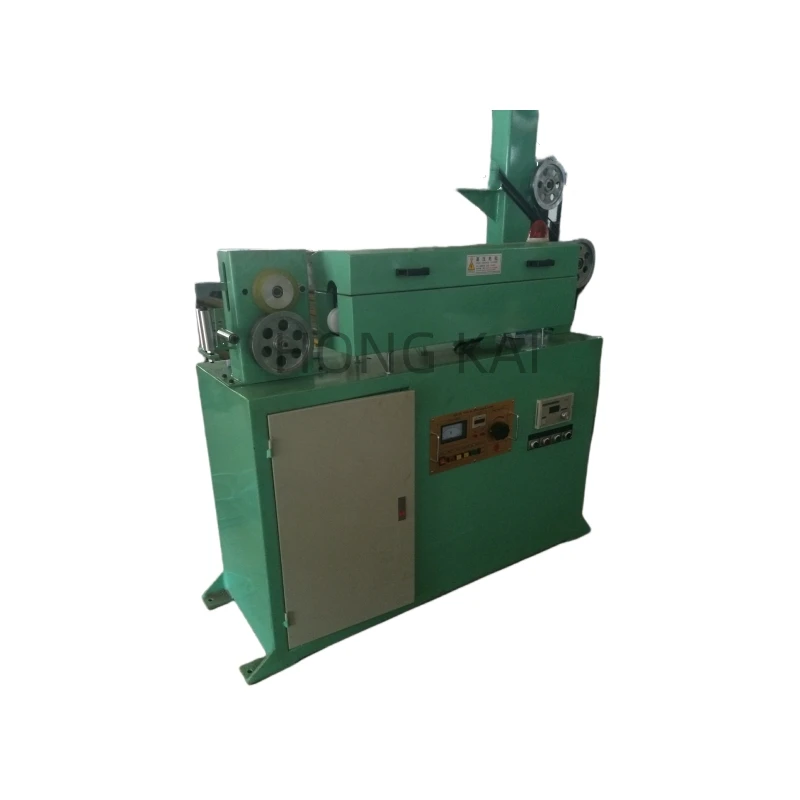

Φ50+35 extrusion main motor
Φ400～630mm double-shaft take-up machine
